KIT CONTENTS
This kit ships with the following accessories.
| Item | Qty | Description |
| 1 | 1 | Rack Bracket Assembly, White |
| 2 | 4 | Screw, M4 x 30mm Socket Head Stainless Steel |
| 3 | 6 | Nylon 6/6 Cable Ties, 99 x 2.5 x 1.1mm |
| 4 | 3 | Nylon 6/6 Cable Ties, 300 x 3.6mm |
KIT ASSEMBLY

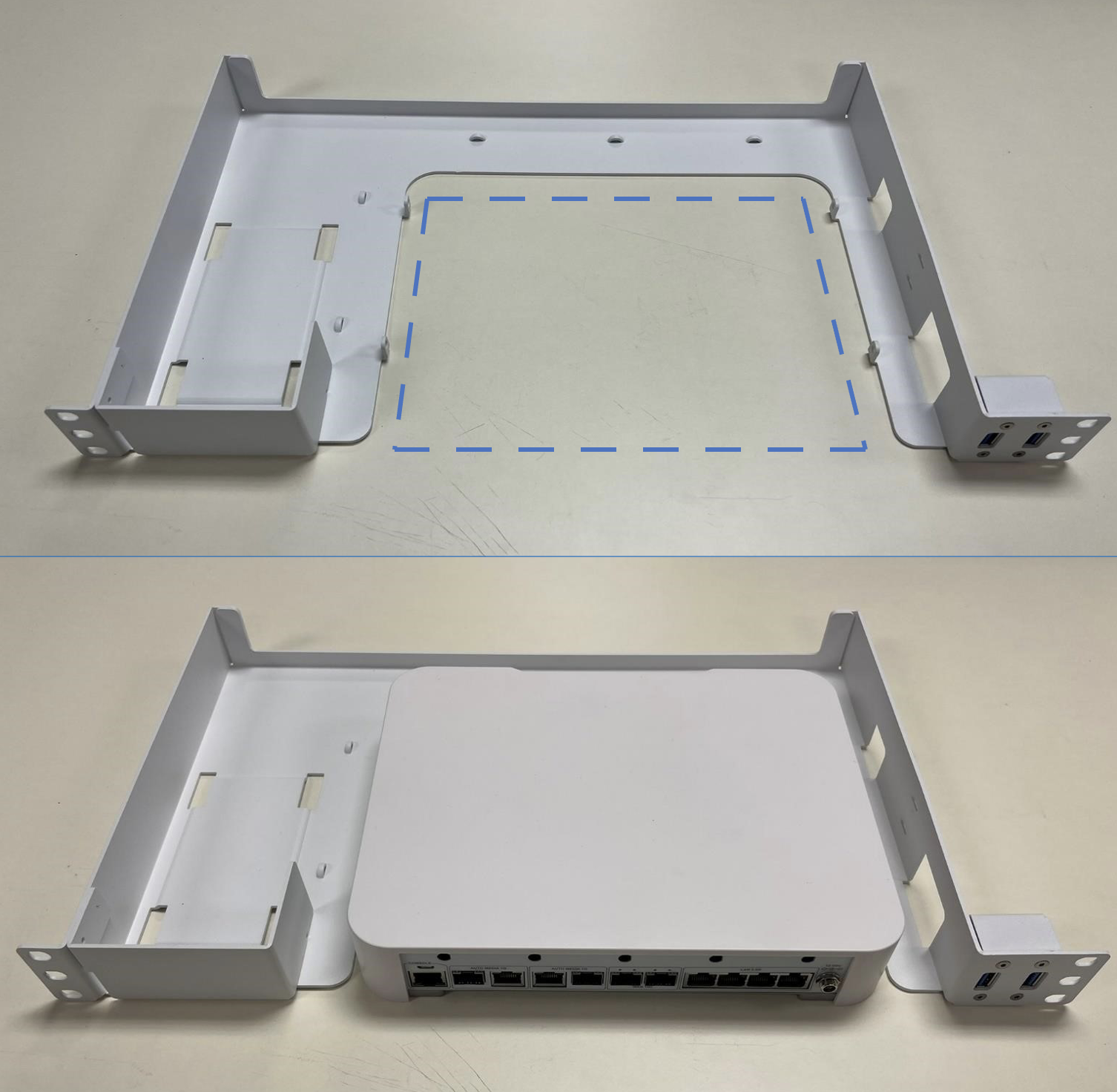

- Insert the Bigleaf device into the rackmount bracket, oriented as shown.

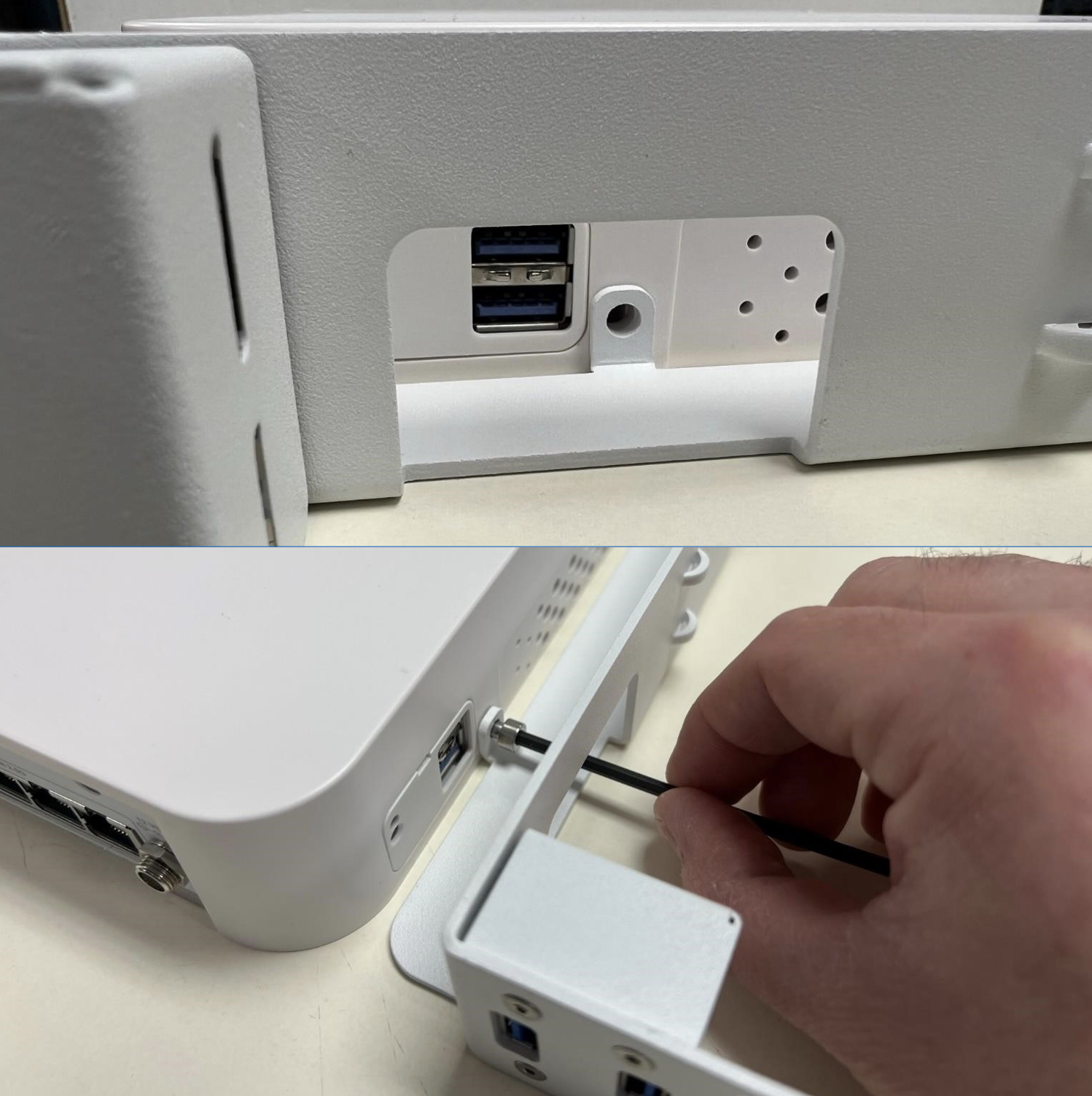

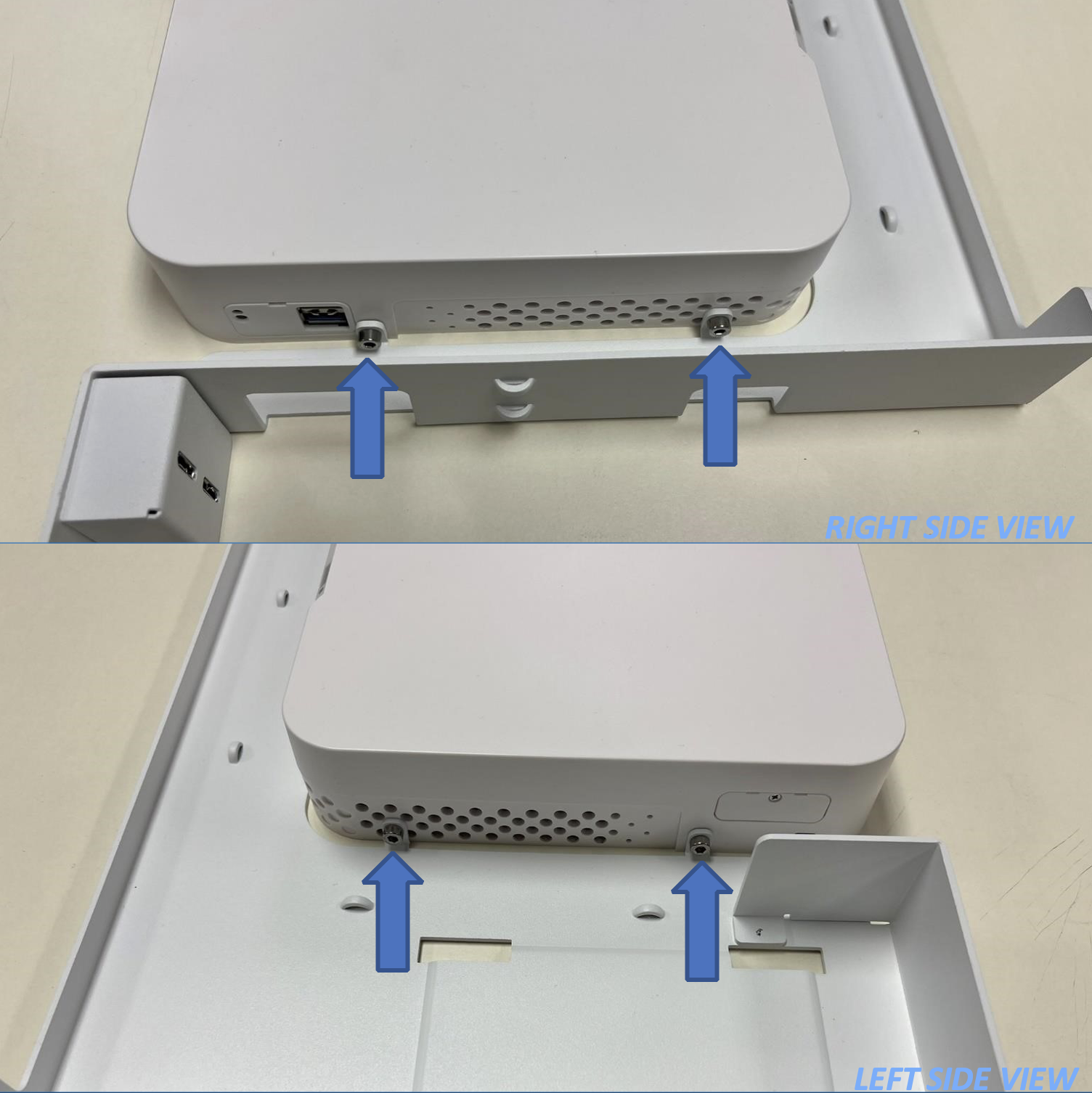

- Align the mounting holes in the Bigleaf device with the holes located in the tabs on the rackmount bracket. Insert a screw into one of the mounting holes and snug. Do not overtighten.
- Insert the remaining screws into the mounting holes and snug. Do not overtighten.

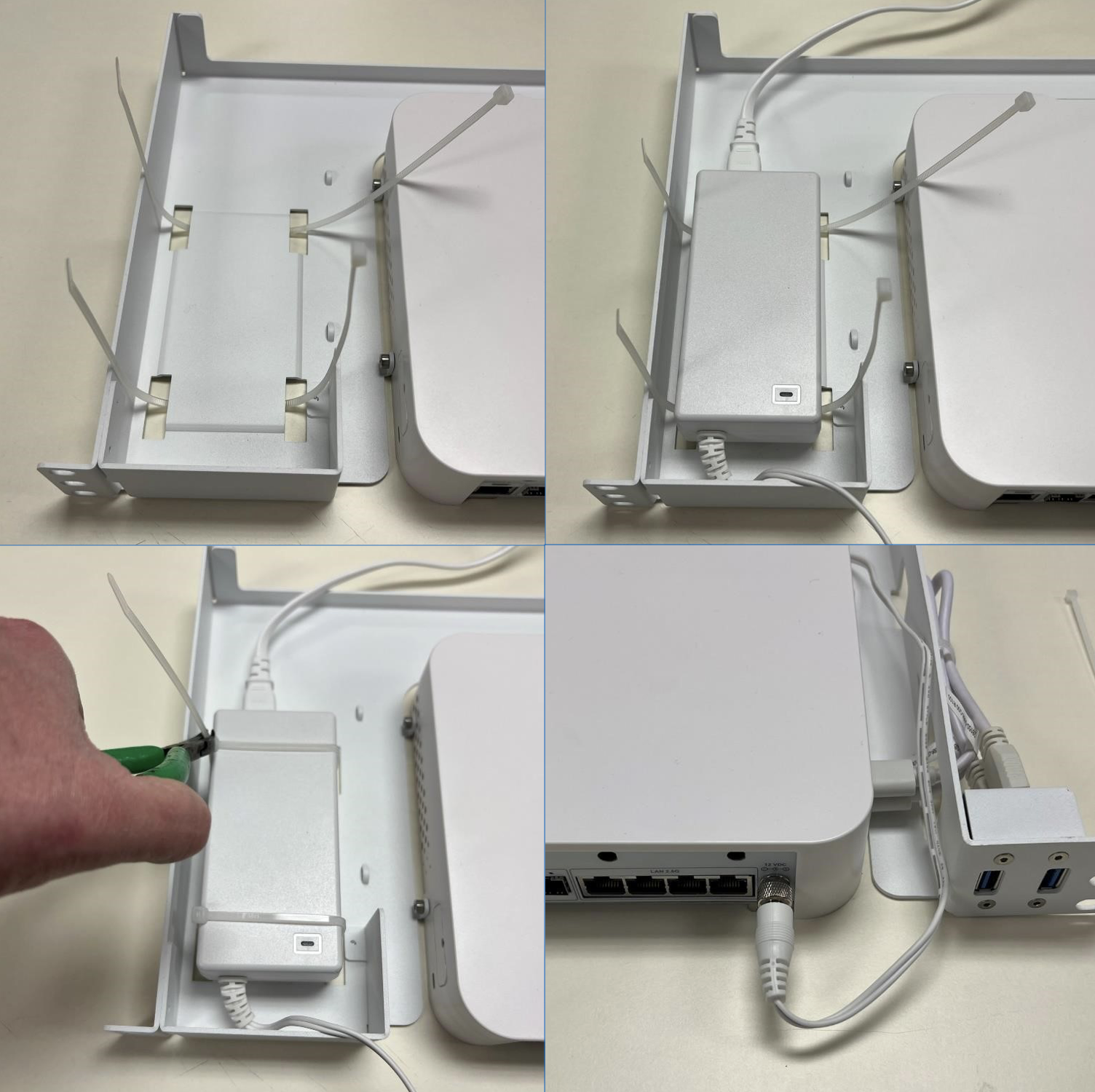

- Route two 300mm cable ties underneath the PSU standoff on the rackmount bracket. Place the PSU on the standoff with the cables oriented as shown. Secure the PSU to the rackmount bracket with the cable ties and snip of the excess. Screw power cable into Bigleaf device.

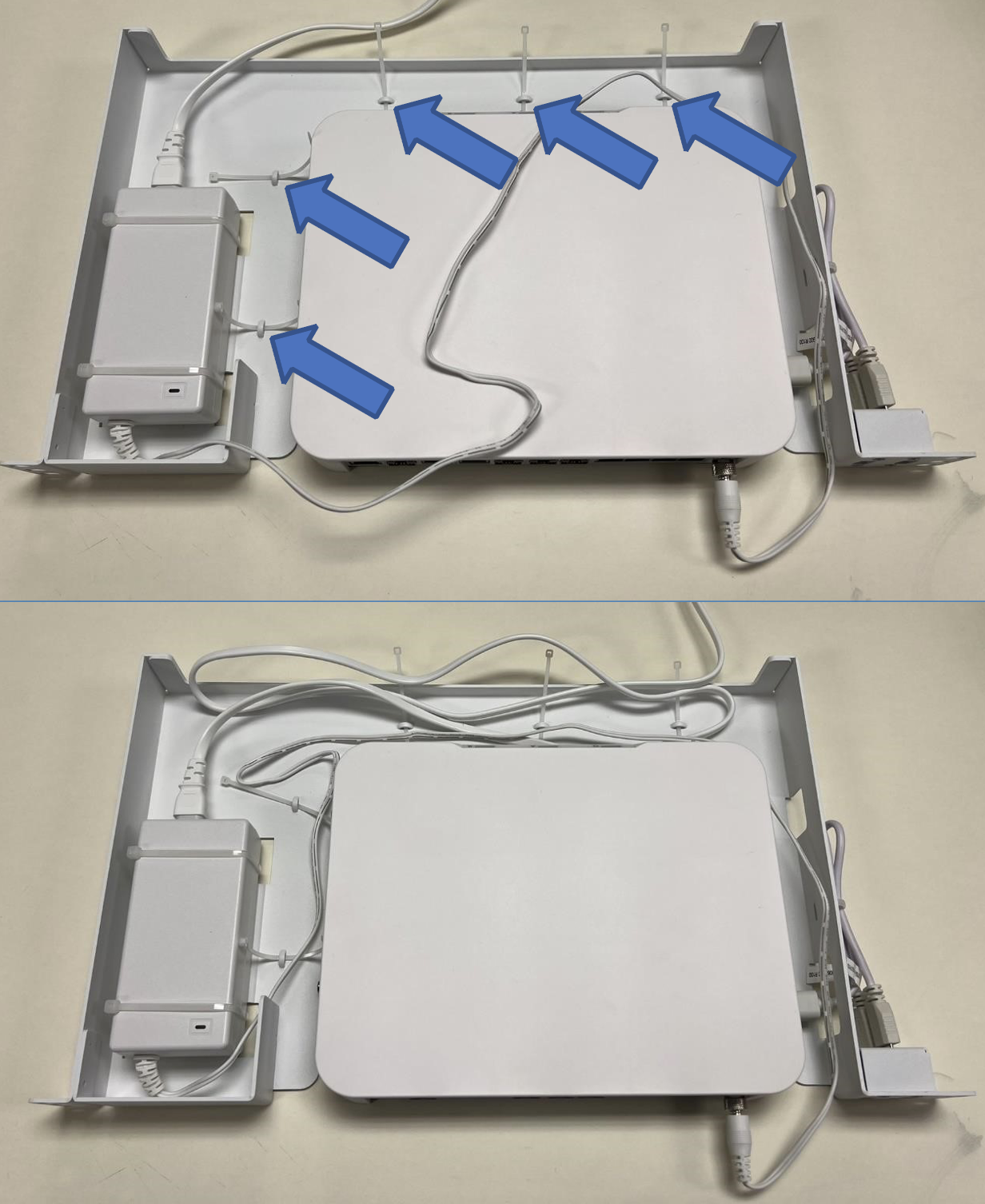

- Route five 99mm cable ties through the cable tie mounts on the rackmount bracket where shown. Bundle the PSU cables and route them around the rackmount bracket as shown.

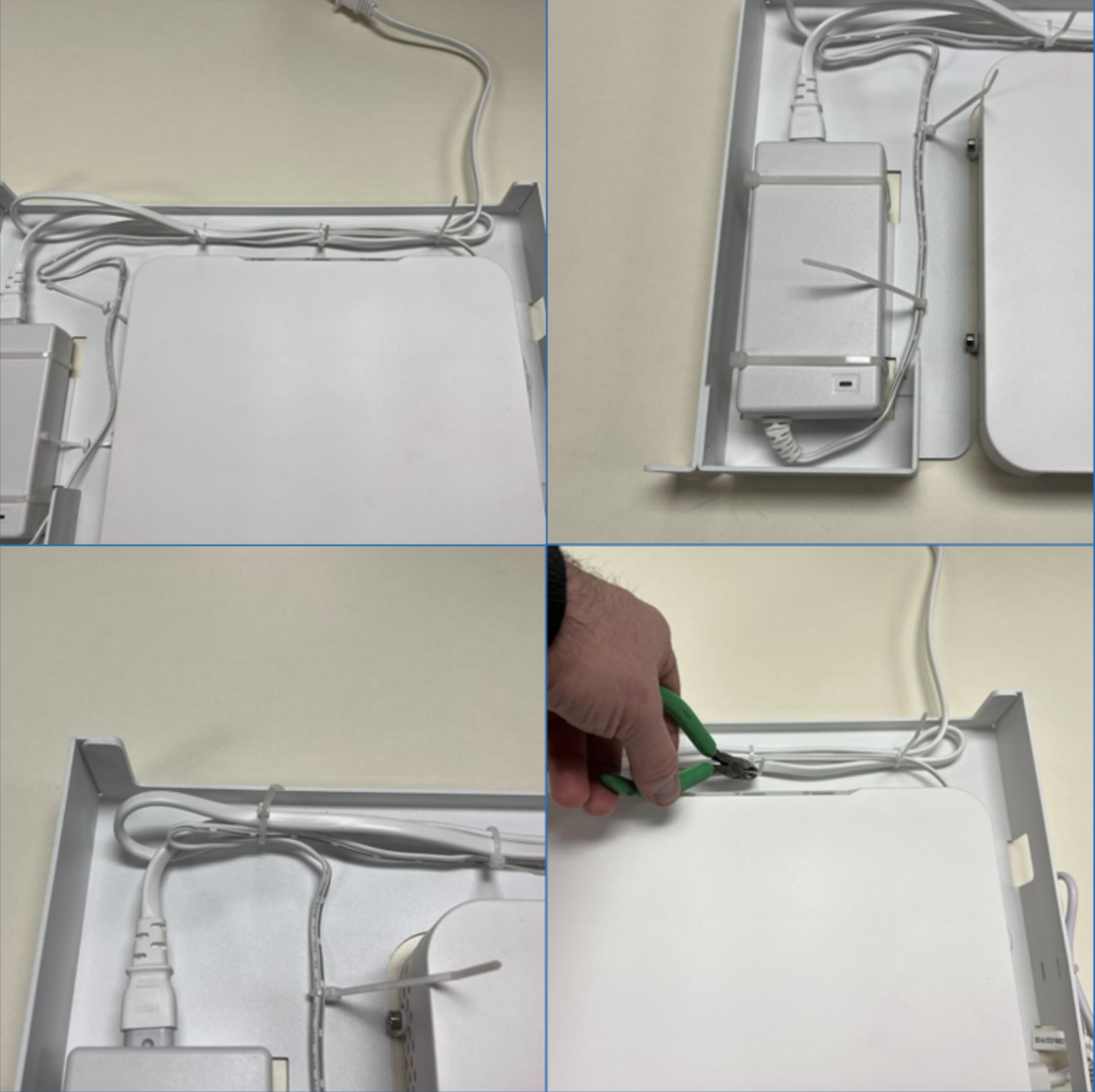

- Secure the PSU cables with the cable ties. If necessary, bundle any excess cable slack and secure with the remaining 99mm cable tie. Snip off the excess.

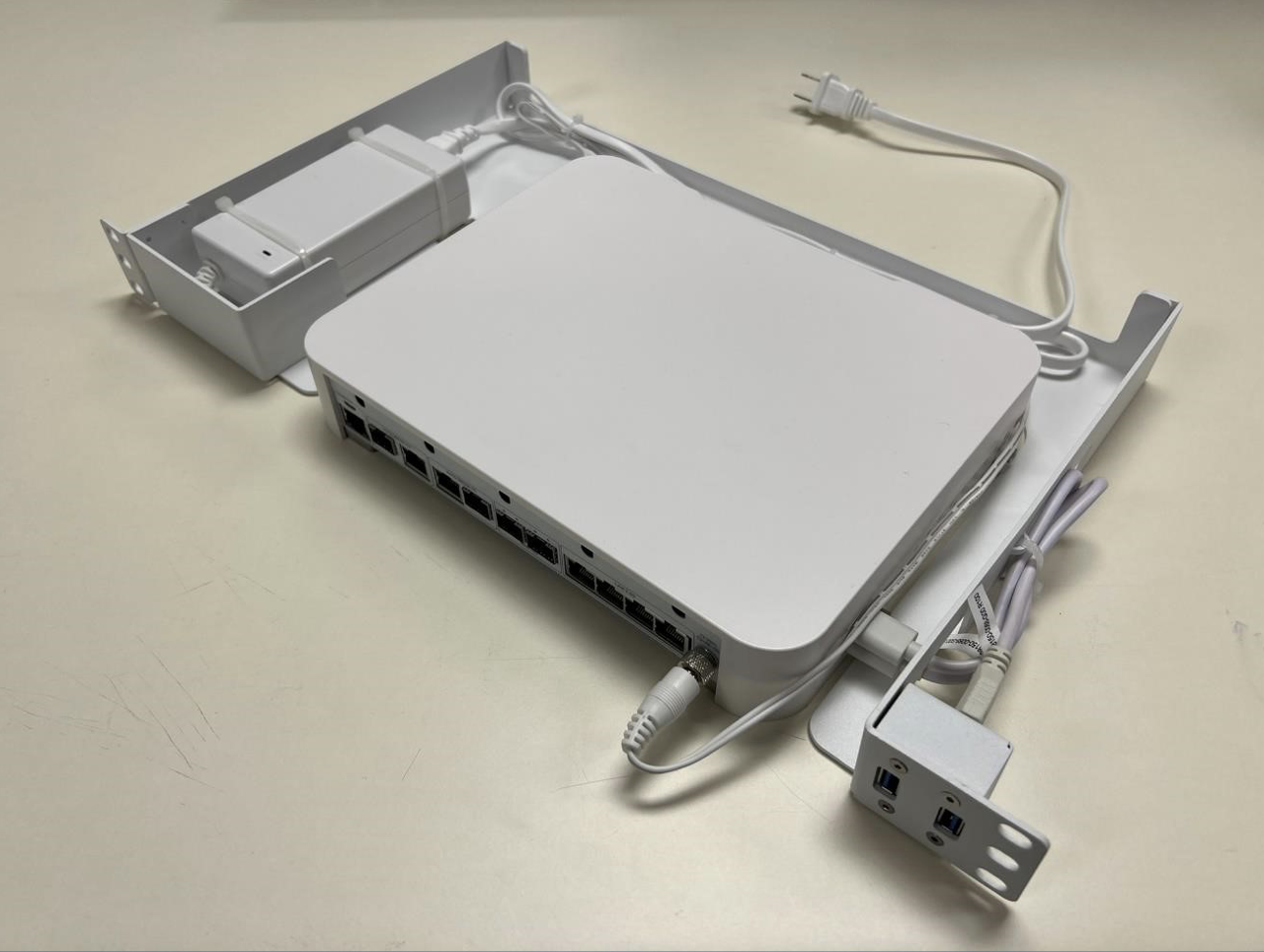

- The rackmount setup is complete and the Bigleaf device can now be installed into a network rack.
