Bigleaf Wi-Fi Configuration

Currently Wi-Fi features are only available with the Edge 800W device. See the Bigleaf Edge Router Technical Datasheet for more information.

Customer must have 'Super Admin' company access to make the following changes.

Wi-Fi Configuration Options

• Once enabled, Wi-Fi settings can be configured under the new 'Wi-Fi' tab
• Customers can toggle off/on individual 2.4GHz and 5GHz networks
• Customers can edit Wi-Fi network name (SSID)
• Customers can view/update Wi-Fi password
  • Bigleaf currently utilizes WPA2 security protocol for Wi-Fi passwords
• Customers can edit Wi-Fi channels in use for 2.4GHz and 5GHz networks
• Customers can enable/disable broadcast of SSID

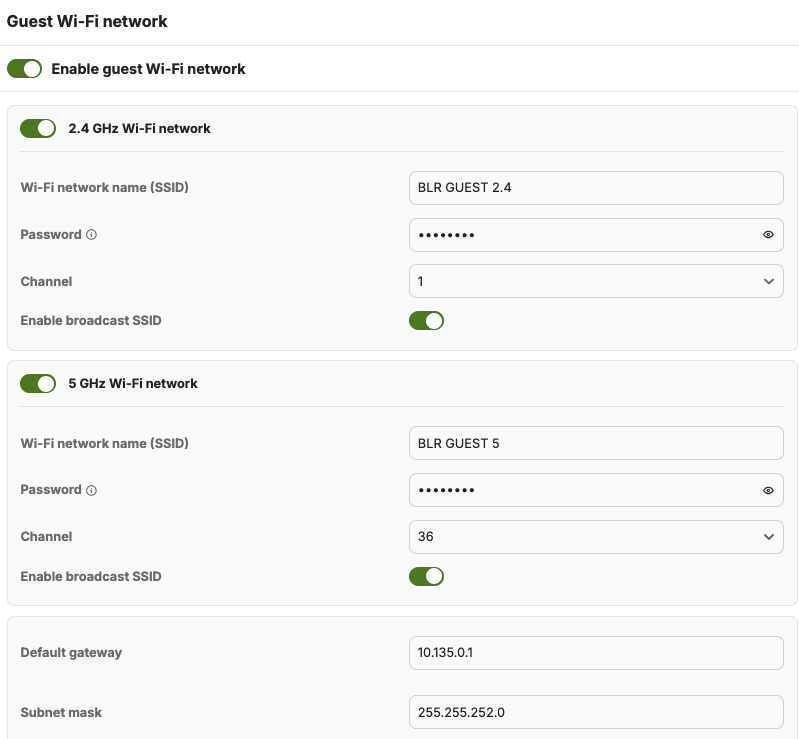

Guest Wi-Fi Configuration Options

Below the Primary Wi-Fi network settings, there is a toggle button to enable a 'Guest Wi-Fi':

Devices connected to the 'Guest Wi-Fi' network will be segregated into a separate subnet and DHCP server.

• Once enabled, customers can toggle off/on individual 2.4GHz and 5GHz networks
• Customers can edit Guest Wi-Fi network name (SSID)
• Customers can view/update Guest Wi-Fi password
  • Bigleaf currently utilizes WPA2 security protocol for Wi-Fi passwords
• Customers can edit Wi-Fi channels in use for 2.4GHz and 5GHz networks
• Customers can enable/disable broadcast of SSID
• Customers can edit Guest Wi-Fi default gateway and subnet mask
